Drive Isolation Transformers From Controlled Magnetics

Controlled Magnetics manufactures custom three phase drive isolation transformers that feature 50/60 Hz frequencies, and are available as in 50/60 Hz frequencies, and are available in 600 volt or 5 kV class. Sizes from 1 kVA to 750 kVA. Types of drive isolation transformers include open-type and NEMA 1 type. They are reliable to improve AC/DC power quality of a variable speed drives (vfd's), UPS, and other three phase power supply applications. Some advantages offered by these transformers include: better regulation, greater efficiency and overload capacity, lower losses and energy consumption. Our transformers are Custom Made in the USA to Your Exact Specs.

Custom Three Phase Drive Isolation Transformers - Sizes From 1 kVA to 750 kVA

Economical Power Conversion Solutions

Our standard drive isolation transformers offer cost effective solutions to facility power quality problems, line isolation or voltage change requirements. Our DT Series transformers are specially designed to improve the power supply quality for a non-linear load such as an ac variable frequency drive, dc drive, induction heating equipment or other SCR controllers. Our transformers help to improve your productivity while keeping tight controls on costs.

Drive Ssolation Transformer Specifications

50hz, 60hz, 50/60hz
Three Phase

The Standard Features That You Want

Weight and cost are both minimized by our efficient use of aluminum winding conductors. Your installation costs are kept to a minimum through our use of finger-safe terminations on units rated less than 150 amps. Transformers with higher current ratings have solid copper tab type terminals. The UL200C temperature rating of our insulation materials are economically utilized while maintaining adequate operating safety margins.

Optional Features Available When Needed

There is no sense paying for features you don't need. That's why we've designed our standard ZST Series drive isolation transformers to include the features you must have, but to leave all others as options for you to choose only when you need them. You can specify taps, thermal switches, enclosure types and many other options to your order when you need them.

Enclosures That Meet Your Needs

While many transformer companies only offer enclosed drive isolation transformers, because they use the cabinet walls as the transformer mounting brackets, you'll be pleased to know that we'll accommodate your needs for the enclosure and mounting method you want. Whether you need open core & coil construction or enclosures for Nema 1, Nema 12 or Nema 3R applications. We'll even provide Nema 12 potted construction for maximum protection and minimum audible noise.

Broad Range of Ratings Available

Whether you need to supply power to a 2MVA load, or a 10KVA load, we design and build a transformer to meet your needs. We can handle both low voltage and medium voltage requirements.

Multi Pulse Winding Configurations

Use our DT Series transformers to supply 6-pulse, 12-pulse or 18-pulse equipment. You can also configure multiple DT Series transformers to accomplish harmonic cancellation between multiple loads.

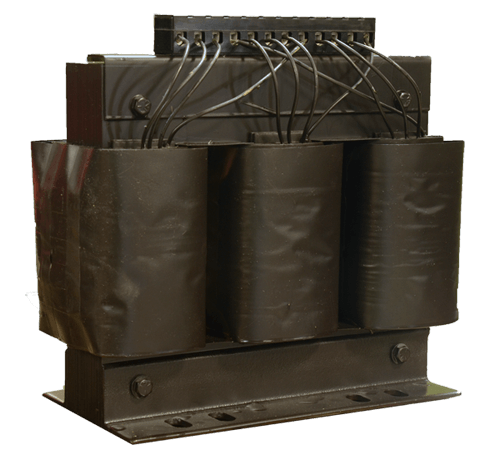

Three Phase Drive Isolation Transformer

Selection: OPEN Type - Isolation Transformers

Select our Isolation Transformers based on the total apparent power requirements of the load. Be sure to include harmonic currents when using DT Series transformers to supply non-linear loads. When ordering, specify voltage ratings of primary and secondary windings along with any requirements for taps, shield, or enclosure.

OPEN Type (480:480, 60hz)

KVA 480:480, 60hz With Shield with taps - 1 set of +/-2.5% w/shield and +/-2.5% taps
7.5 DT7A6 DTS7A6 DT7A6T1 DTS7A6T1
11 DT11A6 DTS11A6 DT11A6T1 DTS11A6T1
14 DT14A6 DTS14A6 DT14A6T1 DTS14A6T1
20 DT21A6 DTS21A6 DT21A6T1 DTS21A6T1
27 DT27A6 DTS27A6 DT27A6T1 DTS27A6T1
34 DT34A6 DTS34A6 DT34A6T1 DTS34A6T1
40 DT40A6 DTS40A6 DT40A6T1 DTS40A6T1
51 DT51A6 DTS51A6 DT51A6T1 DTS51A6T1
63 DT63A6 DTS63A6 DT63A6T1 DTS63A6T1
75 DT75A6 DTS75A6 DT75A6T1 DTS75A6T1
93 DT93A6 DTS93A6 DT93A6T1 DTS93A6T1
118 DT118A6 DTS118A6 DT118A6T1 DTS118A6T1
145 DT145A6 DTS145A6 DT145A6T1 DTS145A6T1
175 DT175A6 DTS175A6 DT175A6T1 DTS175A6T1
220 DT220A6 DTS220A6 DT220A6T1 DTS220A6T1
275 DT275A6 DTS275A6 DT275A6T1 DTS275A6T1
330 DT330A6 DTS330A6 DT330A6T1 DTS330A6T1
440 DT440A6 DTS440A6 DT440A6T1 DTS440A6T1
550 DT550A6 DTS550A6 DT550A6T1 DTS550A6T1

Other voltages

Substitute the following ( ) voltage codes for (A6) in basic catalog number

Voltage Codes
208:208 60hz (G6)
240:240 50hz (B5)
240:240 60hz (B6)
380:380 50hz (C5)
415:415 50hz (D5)
600:600 60hz (E6)
690:690 50hz (F5)
Any rating is available. Consult factory for any other ratings

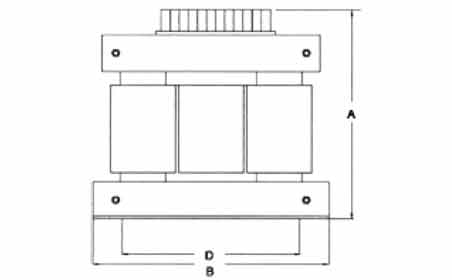

Front View of a Drive Isolation Transformer

( Front View )

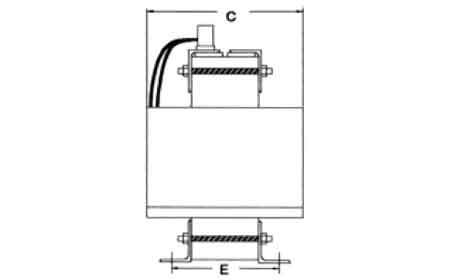

Side view of a Drive Isolation Transformer

( Side View )

Features

  • All units are 3 phase 60 Hz
  • All units have 100% copper windings
  • All units are designed to operate at 155° C rise
  • All units incorporate class H insulation
  • All units have touchproof terminals up to 40KVA
  • All units have delta connected primaries and wye connected secondaries

Optional Features

  • 50/60 Hz operation
  • 230/460 or 240/480 dual primaries
  • NEMA 1 ventilated enclosure floor mounted
  • Faraday electrostatic shield
  • Multi-Tap primary voltages
  • Thermostat

Drive Isolation Transformers Specifications

KVA A B C D E Approx. Weight
7.5 8.50 11.00 8.50 7.25 6.00 95 LBS.
11.0 11.00 14.50 7.50 8.00 4.75 125 LBS.
14.0 11.00 14.50 8.50 8.00 5.50 125 LBS.
20.0 13.00 15.50 9.50 10.00 5.50 225 LBS.
27.0 15.00 19.00 9.00 10.00 5.00 275 LBS.
34.0 15.00 19.00 12.00 10.00 5.50 275 LBS.
40.0 15.00 17.50 12.00 10.00 7.50 400 LBS.
51.0 15.00 20.50 14.00 10.00 7.50 450 LBS.
63.0 17.00 21.50 14.50 10.00 7.50 475 LBS.
75.0 17.00 21.50 16.00 14.00 7.50 575 LBS.
93.0 22.00 22.50 17.50 14.00 8.00 675 LBS.
118.0 20.00 26.00 16.00 14.00 8.00 780 LBS.
145.0 25.00 27.00 13.00 14.00 8.00 950 LBS.
175.0 25.00 30.00 16.00 14.00 10.00 1275 LBS.
220.0 26.00 30.00 16.00 14.00 10.00 1425 LBS.
275.0 28.00 34.00 20.00 14.00 14.00 1700 LBS.
330.0 31.00 37.00 22.00 14.00 14.00 2550 LBS.
440.0 40.00 40.00 22.00 14.00 14.00 3400 LBS.
550.0 42.00 40.00 22.00 14.00 14.00 3600 LBS.

Selection: NEMA Type 1- Drive Isolation Transformers

Nema 1 Type (480:480, 60hz)

KVA 480:480, 60hz With Shield with taps - 1 set of +/-2.5% w/shield and +/-2.5% taps
7.5 DT7A6N1 DTS7A6N1 DT7A6N1T1 DTS7A6N1T1
11 DT11A6N1 DTS11A6N1 DT11A6N1T1 DTS11A6N1T1
14 DT14A6N1 DTS14A6N1 DT14A6N1T1 DTS14A6N1T1
20 DT21A6N1 DTS21A6N1 DT21A6N1T1 DTS21A6N1T1
27 DT27A6N1 DTS27A6N1 DT27A6N1T1 DTS27A6N1T1
34 DT34A6N1 DTS34A6N1 DT34A6N1T1 DTS34A6N1T1
40 DT40A6N1 DTS40A6N1 DT40AN16T1 DTS40A6N1T1
51 DT51A6N1 DTS51A6N1 DT51A6N1T1 DTS51A6N1T1
63 DT63A6N1 DTS63A6N1 DT63A6N1T1 DTS63A6N1T1
75 DT75A6N1 DTS75A6N1 DT75A6N1T1 DTS75A6N1T1
93 DT93A6N1 DTS93A6N1 DT93A6N1T1 DTS93A6N1T1
118 DT118A6N1 DTS118A6N1 DT118A6N1T1 DTS118A6N1T1
145 DT145A6N1 DTS145A6N1 DT145A6N1T1 DTS145A6N1T1
175 DT175A6N1 DTS175A6N1 DT175A6N1T1 DTS175A6N1T1
220 DT220A6N1 DTS220A6N1 DT220A6N1T1 DTS220A6N1T1
275 DT275A6N1 DTS275A6N1 DT275A6N1T1 DTS275A6N1T1
330 DT330A6N1 DTS330A6N1 DT330A6N1T1 DTS330A6N1T1
440 DT440A6N1 DTS440A6N1 DT440A6N1T1 DTS440A6N1T1
550 DT550A6N1 DTS550A6N1 DT550A6N1T1 DTS550A6N1T1

Other voltages

Substitute the following ( ) voltage codes for (A6) in basic catalog number

Voltage Codes
208:208 60hz (G6)
240:240 50hz (B5)
240:240 60hz (B6)
380:380 50hz (C5)
415:415 50hz (D5)
600:600 60hz (E6)
690:690 50hz (F5)
Any rating is available. Consult factory for any other ratings

Dimensions (inches) & Weight (pounds)

KVA Height Width Depth Weight
7.5 20 16 16 135
11 20 16 16 165
14 20 16 16 190
20 24 23 20 285
27 24 23 20 340
34 24 23 20 360
40 24 23 20 385
51 34 28 22 480
63 34 28 22 510
75 34 28 22 600
93 34 28 22 725
118 34 28 22 825
145 40 32 24 1075
175 40 32 24 1300
220 40 32 24 1400
275 46 36 24 1520
330 46 36 24 1870
440 65 45 35 2525
550 65 45 35 3025
Drive Ssolation Transformer Specifications

Data subject to change without notice.

SPECIFICATIONS: Drive Isolation Transformers

Power Phases:
Three phase (single phase also available)
Voltage Ratings:
(Specify PRI & SEC voltage on order)
  • Low Voltage: 600 volts or less
  • Medium Voltage: 5000 volts or less
Winding Configuration:
(Specify winding configuration on order)
  • Standard: Delta Primary, Wye secondary
  • Optional: Delta: Delta, Wye: Wye, or multiple windings
Voltage Taps:
Optional on all units (+/- 2.5%, +/- 5%, etc)
Frequency:
  • Standard: 60 hertz
  • Optional: 50 hertz, 50/60 hertz
Impedance:
2% - 4% typical
Windings:
  • Standard: Aluminum with copper terminals
  • Optional: Copper with copper terminals
Insulation System:
Class H (200° C) UL recognized insulation system
Temperature:
Ambient
40°C maximum
Rise
155°C standard
Thermal Switch:
Optional all units
Terminations:
≤ 150 amps
Touchproof copper terminals
> 150 amps
Copper tab terminals
Electrostatic Shield:
Optional on all units
Enclosures:
Open core & coil
Nema type 1 (Floor standing)
Nema type 12 (Floor standing)
Nema type 12 potted

Drive Isolation Transformer for Non-Linear Loads

The drive isolation transformer (DT-series) is designed to distribute electrically isolated power to non-linear loads or to a combination of linear and non-linear loads. It is for use with loads that draw harmonic currents from the power source in a 3-phase, 4-wire electrical system. DT Series transformers provide circuit impedance which helps to reduce the harmonic current distortion drawn by its load(s).

Engineering Specification

Controlled Magnetics' manufacturing facility assures top flight quality while also providing the short-run flexibility to meet your most demanding custom transformer specifications.

Some of the transformer types provided in this category: isolation transformers, power isolation transformer, drive isolation transformer manufacturer, medical isolation transformers, custom drive isolation transformers, marine isolation transformers, electrical isolation transformers, three phase drive isolation transformers, 1 kVA drive isolation transformers, custom 100 kVA drive isolation transformers , 200 kVA drive isolation transformers, custom 300 kVA drive isolation transformers, 500 kVA drive isolation transformers, 600 kVA drive isolation transformers, 750 kVA drive isolation transformers
