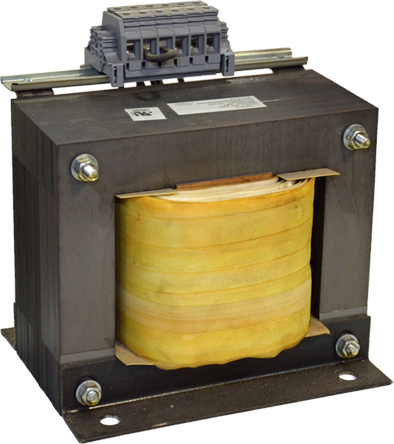

Single Phase Isolation Transformers - Up to 5,000 Volts, Sizes From 100 VA to 500 kVA
Our single-phase isolation transformers are used for a vast variety of power generation and distribution applications in industry. Our single-phase, dry-type transformers are available in the primary and secondary voltage combinations listed on this page. They can be wall mounted or in a floor mounted cabinet enclosure depending upon the kVA rating with channel frames, brackets, and straps of all configurations. Open frame or NEMA 1, 3R, 4, 4X or 12 enclosed. Pad mount enclosures are also available.
Custom Single Phase Isolation Transformers Available to your Exact Specifications.
"Made in the USA" transformers, designed for constant operation and are designed and tested to meet the following current standards:
- ANSI
- NEMA
- UL and CUL Listed
- IEEE
Ideal for these medium and low voltage power applications:
- Machine Tool
- Electrical Equipment
- Data Centers
- Medical
- Voltage Regulating
- Filament
- Marine
- Buck Boost
Controlled Magnetics' single-phase isolation transformers are manufactured under stringent QC oversight covering incoming materials, production, and testing with final approval using state-of-the art production and testing equipment.
( Front View )
( Side View )
Features:
- All units are 1 phase 60 Hz
- All units have 100% copper windings
- All single phase transformers are designed to operate at 55° C rise
- 230/460 V or 240/480 V dual primaries
Optional Features:
- 50/60 Hz operation
- Class B (80° C) or class F(115° C) temp rise
- NEMA 1 ventilated enclosure floor mounted
- Faraday electrostatic shield
- Multi-Tap primary voltages
- Touchproof terminal blocks or flexible leads
Single Phase Isolation Transformer Specifications
| VA | A | B | C | D | E | F | Approx. Weight |
| 50VA | 4.25 | 3.00 | 2.50 | 2.50 | 2.56 | .19 x .38 | 3 LBS. |
| 75VA | 4.50 | 3.00 | 2.50 | 2.50 | 2.75 | .19 x .38 | 4 LBS. |
| 100VA | 5.00 | 3.00 | 2.50 | 2.50 | 3.35 | .19 x .38 | 5 LBS. |
| 150VA | 5.00 | 3.88 | 3.25 | 3.13 | 3.06 | .22 x .50 | 6 LBS. |
| 250VA | 6.25 | 4.50 | 3.88 | 3.75 | 3.13 | .22 x .50 | 10 LBS. |
| 300VA | 6.50 | 4.50 | 3.88 | 3.75 | 3.36 | .22 x .50 | 10 LBS. |
| 350VA | 6.75 | 4.50 | 3.88 | 3.75 | 3.75 | .22 x .50 | 12 LBS. |
| 500VA | 7.50 | 4.88 | 4.25 | 4.00 | 4.63 | .22 x .50 | 18 LBS. |
| 750VA | 7.75 | 5.25 | 4.50 | 4.38 | 5.00 | .31 x .50 | 24 LBS. |
| 1000VA | 7.75 | 6.75 | 5.75 | 5.75 | 4.00 | .31 x .50 | 31 LBS. |
| 1500VA | 9.50 | 6.75 | 5.75 | 5.75 | 5.75 | .31 x .50 | 42 LBS. |
| 2000VA | 10.00 | 6.75 | 5.75 | 5.75 | 6.38 | .31 x .50 | 56 LBS. |
| 3000VA | 6.00 | 11.88 | 8.75 | 6.75 | 4.75 | .406 x .813 | 71 LBS. |
| 5000VA | 9.00 | 11.88 | 8.75 | 6.75 | 4.75 | .406 x .813 | 130 LBS. |
